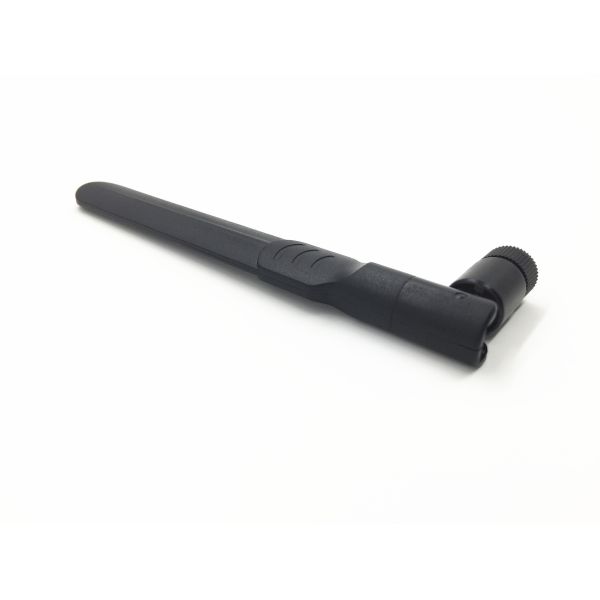

Mobile Router Modem 4G LTE Antenna High Gain Long Range External Antenna

Dongguan Boges Communication Technology Co., Ltd

Mobile Router Modem 4G LTE Antenna High Gain Long Range External Antenna

Brand Name : BOGES

Model Number : BGS-AN4000-13160B

Certification : RoHs

Place of Origin : Dongguan, Guangdong, China

MOQ : Negotiable

Price : Negotiable

Supply Ability : 20K Per Day

Delivery Time : 10 Days

Packaging Details : PE Bag / Carton

Frequency : 700 ~ 2700 MHz

S.W.R : 2.0 Max.

Impedance : 50 OHM

Peak Gain : 5 dB

Connector : RP-SMA Male; SMA Male

Length : 160mm

Contact Now


4G LTE Antenna For Mobile Router Modem High Gain Long Range External antenna


Detail Product Description


Frequency: 700~ 2700 MHz

S.W.R: 2.0 MAX

Impedance: 50 ohm

Peak Gain: 5 dB

Connector: RP-SMA Male; SMA Male.


Application:


1.Wi-Fi /WLAN /MEMO /Bluetooth System

2. Router

3. IEEE802.11 WLAN System

4. Wireless Communication System


Specification


A. Electrical Characteristics
Frequency700 ~ 2700 MHz
Impedance50 ohm
S.W.R2.0 Max.
Peak Gain5 dB
Return Loss>= 10 dB
B. Material & Mechanical Characteristics
Cable TypeRG 178 Cable
Connector TypeRP-SMA Male;SMA Male
BodyABS, White
C. Environmental
Operation Temperature- 40 ˚C ~ + 65 ˚C
Storage Temperature- 40 ˚C ~ +80˚C

Characteristics and Reliability Test


Test Items

Test Condition and Procedure

Requirements

C1

S.W.R.

Set DUT on Network Analyzer; make individual calibration to test

Directive DUT specification

M1

Vibration

MIL-STD-202G, 201A

Amplitude: 0.03 inch (0.76mm); Freq: 10 to 55 Hz

3 directions; 2 hours for each direction

1. No Visual Damage

2. Frequency Tol.<= 5%

M2

Random

Drop

Height: 1.5 Meter;

3 directions; 1 time for each direction

1. No parts separated

2. Frequency Tol.<= 5%

M3

Solderability

MIL-STD-202G, 210F, cond. A

Solder iron: 350±10°C; Duration: 5 seconds

1. Mounted on PCB

2. No Visual Damage

M4

Terminal-

Pull Test

MIL-STD-202G, 211A, cond. A

Holding with individual specification; force applied

to axis of terminal

1. Directive DUT specification

2. Frequency Tol.<= 5%

M5

Dimension

Inspection of dimension, color, material, package,

surface process

Directive DUT specification

E1

Salt Spray

MIL-STD-202G, 101E, cond. B

Temp: 35°C; RH: >= 95%; NaCl solution: >= 5%;

Time: 48 hours

After 2 Hours Recovery

1. No Visual Damage

2. Frequency Tol.<= 5%

E2

Humidity

MIL-STD-202G, 103B, cond. B

Temp: 40°C; RH: >= 95%; Time: 48 hours

After 2 Hours Recovery

1. No Visual Damage

2. Frequency Tol.<= 5%

E3

Thermal Shock

1 Cycle: - 40°C (30 minutes) to + 80°C (30 minutes)

Cycles: 24

After 2 Hours Recovery

1. No Visual Damage

2. Frequency Tol.<= 5%

E4

Life (High Temp.)

MIL-STD-202G, 108A, cond. A

Temp: 85°C; Time: 96 hours

After 2 Hours Recovery

1. No Visual Damage

2. Frequency Tol.<= 5%

R1

RoHS

With Reference to IEC 62321:2008 with flow chart

Directive RoHS 2002/95/EC

R2

PFOS

With Reference to USA EPA 3540C:1996 by LC/MS

Directive RoHS 2006/122/EC

R3

PFOA

With Reference to USA EPA 3540C:1996 by LC/MS

Directive RoHS 2006/122/EC


S Parameter Test Data
